Video > Using the control panel

Using the control panel

Perform various operations using the on-screen control panel. The control panel can be displayed or hidden by pressing the triangle button.


The icons displayed on this page are defined as follows:

Video recorded on a read-only Blu-ray Disc (BD)
Video recorded on a rewritable BD
Video recorded in AVCHD format
  • Video recorded on a DVD-ROM, such as commercially available DVD-Video content
  • Data recorded on DVD+R / DVD+RW or DVD-R / DVD-RW
Video recorded in VR Mode on DVD-R / DVD-RW
Video files saved on the hard disk
Video files saved on storage media*
*

An appropriate USB adaptor (not included) is required to use storage media with some models.

Notice

Some content may have playback conditions preset by the content developer. In such cases, some control panel items may not be available.

Red / green / blue / yellow icons


Perform the operations corresponding to the icon. Features assigned to the icon vary depending on the content.

Up / Down / Left / Right


Select an item.

Enter


Confirm the selected item.

Numeric Pad


Enter numbers.

Pop-Up Menu


View the pop-up menu.

Menu


View the menu.

Top Menu


View the top menu.

Return


Return to a specific point in the video.

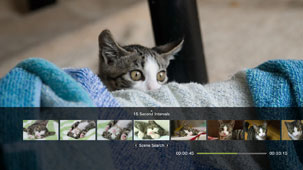

Scene Search


Use this feature to view thumbnails that are created at certain time intervals. Select a thumbnail to start playing the video from that particular scene.

1.

Use the up or down button to select the time interval to be used in creating the thumbnails.
You can select [Chapter] or one of various time intervals.

2.

Use the left or right button to select the thumbnail for the scene that you want to watch.
Playback begins from the scene that you select.

Hints

  • The [Chapter] option can only be selected for video content that includes chapter information.
  • The scene search feature cannot be used for video content that is less than one minute in length.
  • The scene search feature cannot be used for some other types of video content.
  • When you select a thumbnail, a preview of the scene is played for about 15 seconds.

Go To


Play from a specified chapter or time.

Title X Specify the title number.
Chapter X Specify the chapter number.
XX:XX / XX:XX:XX Specify the time.

Hint

Depending on the video file, you may not be able to use (Go To).

Angle Options


Select one of the available viewing angles for content recorded with multiple angles.

Audio Options


Select one of the available audio options for content recorded with multiple audio tracks.

Subtitle Options


Select one of the available subtitle options for content recorded with multiple subtitle languages.

Subtitle Style Options


Select one of the available viewing options for content recorded with multiple subtitle styles.

Volume Control


Adjust the volume output level of content played under (Video). Select one of nine levels.

Hints

  • The sound may become distorted if the volume output level is set too high. If this happens, lower the volume output level.
  • This setting may be disabled when using certain audio devices or when outputting certain types of audio.

AV Settings


Adjust settings related to the output of content played under (Video). The items that are displayed vary depending on the content.

Frame Noise Reduction Set to reduce fine noise.
Block Noise Reduction Set to reduce mosaic-like block noise displayed on the screen.
Mosquito Noise Reduction Set to reduce mosquito noise that appears on the edges of visual images.
Upscaling Set for upscaled output.

The value that you set is reflected in [Upscaler] under (Settings) > (Video Settings).
Video Output Format Set the video output format.

Select the video output format for playback of DVDs or BDs. The value that you set is reflected in [BD / DVD Video Output Format (HDMI)] under (Settings) > (Video Settings).
Y Pb / Cb  Pr / Cr Super-White Set for super-white display.

Super-white signal can now be output when playing a DVD, BD, or AVCHD disc. The value that you set is reflected in [Y Pb / Cb  Pr / Cr Super-White (HDMI)] under (Settings) > (Display Settings).
RGB Full Range Set for RGB full range display.

The value that you set is reflected in [RGB Full Range] under (Settings) > (Display Settings).
Dynamic Range Control Set the dynamic range control.

Enable or disable your PS3™ system's dynamic range control feature while playing BDs and DVDs that produce Dolby Digital sound. The value that you set is reflected in [BD / DVD Dynamic Range Control] under (Settings) > (Video Settings).
Audio Output Format Set the audio output format.

Select the audio output format for playback of DVDs or BDs. The value that you set is reflected in [BD / DVD Audio Output Format (HDMI)] or [BD Audio Output Format (Optical Digital)] under (Settings) > (Video Settings).

Time Options


Select to display either the elapsed time or the remaining time for a title or a chapter. Items displayed vary depending on the content being played.

Screen Mode


Change the screen mode.

Normal Set to display the video to fit the screen size without changing proportions.
Zoom Set to display the video at the full screen size without changing proportions. Portions of the video at the top and bottom or left and right are cut off.
Full Screen Set to display the content on the entire screen by changing proportions and stretching the image vertically and horizontally.
Original Set to display the video in its original size.

Hint

Depending on the video file, it may not be possible to change the screen mode.

Change Icon


Change the icon (thumbnail image) associated with a video file. During playback of the video file, select (Change Icon) at the point when the image that you want to select as the icon is displayed.

Hints

  • Depending on the video file, it may not be possible to change the icon.
  • A video file shorter than two seconds cannot be used as an icon.

Delete


Delete a video file that is playing.

Display


View playback status and other related information. Information displayed varies depending on the content being played.

(1)

Media

(2)

Title

(3)

Control panel

(4)

Sound codec / channel number / sampling rate / bit rate

(5)

Video codec / bit rate

(6)

Status icon

(7)

Title / chapter

(8)

Elapsed time / total time

Previous (Return to Beginning) / Next


Go to the previous or next chapter.

Hint

When playing video files saved on storage media or the hard disk, (Next) will not be available. Also, selecting (Previous) will cause playback to start from the beginning of the video file.

Fast Reverse / Fast Forward


Fast reverse or fast forward the content being played. Each time you press the ecks button, the playback rate changes.

Play


Start playback of content.

Hint

In most cases, the next time you play video content that has been stopped during playback, playback will resume from the previous stopping point.
To play from the beginning, press the PS button to stop playback and to display the XMB™ menu. Select the icon, press the triangle button, and then select [Play from Beginning] from the options menu.

Pause


Temporarily pause playback.

Stop


Stop playback.

Instant Replay / Instant Advance


Move to a place in the video 15 seconds back or 15 seconds forward.

Slow (Back) / Slow (Forward)


Play in slow mode.

Frame Reverse / Frame Advance


Play one frame at a time.

A-B Repeat


Play a specified section of content repeatedly.

1.

At the beginning of the section to be repeated, select (A-B Repeat).
The starting point, point A, is set.

2.

At the ending of the section to be repeated, press the ecks button.
The ending point, point B, is set and the specified section begins to play repeatedly.

Hint

To clear the A-B Repeat function, select (A-B Repeat).

Repeat


Play content repeatedly.

Hint

To clear the Repeat function, select (Repeat) until [Repeat Off] is displayed.
